Cylinder Height-Approx(mm): 315

Cylinder Diam.-Approx(mm): 80

Capacity: 1

Total Weight(filled)-Approx(kg): 1.40

Discharge Time-Approx(s): 7.5

Test Pressure(bar): 27

Working Pressure at 20°C(bar): 15

Fire Rating: 8A 34B C

Extinguishing Agent: ABC 40% Dry Powder

Propellant Gas: Nitrogen (N2)

Temperature Range: -30°C to 60°C

Paint Finishing: RAL3000 POLYESTER COATING UV RESISTANT

Mounting: Metal wall bracket

Approvals: CE, BS EN3, MARINE

Model: TMPD1

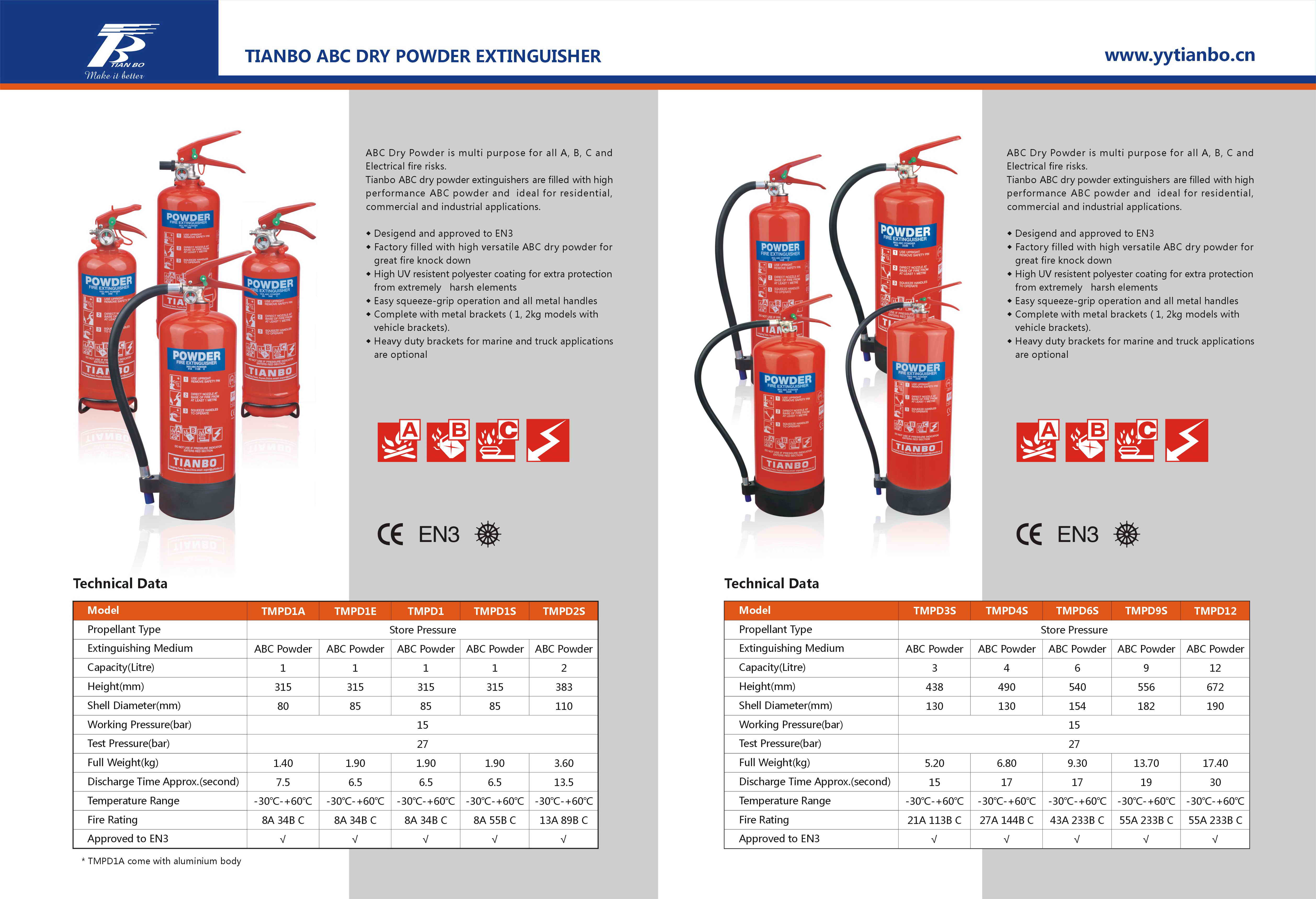

Datasheet: Tianbo Dry powder Portable series.jpg

[ 1.1.1 TANG]

Cylinder Height-Approx(mm): 310

Cylinder Diam.-Approx(mm): 90

Capacity (kg): 1

Total Weight(filled)-Approx(kg): 2.00

Discharge Time-Approx(s): 7

Test Pressure(bar): 27

Working Pressure at 20°C(bar): 15

Fire Rating: 5A 34B C

Extinguishing Agent: ABC 40% Dry Powder

Propellant Gas: Nitrogen (N2)

Temperature Range: -30°C to 60°C

Paint Finishing: RAL3000 POLYESTER COATING UV RESISTANT

Mounting: Metal wall bracket

Approvals: CE, BS EN3, MARINE

Model: Tang PD1

Datasheet:Tang series- Dry Powder Fire Extinguishers.pdf

Cylinder Height-Approx(mm): 870

Cylinder Diam.-Approx(mm): 250

Capacity: 25

Total Weight(filled)-Approx(kg): 40

Discharge Time-Approx(s): 30

Test Pressure(bar): 26

Working Pressure at 20°C(bar): 15

Fire Rating: IIB C

Extinguishing Agent: ABC Powder

Temperature Range: -30°C to 60°C

Paint Finishing: RAL3000 POLYESTER COATING UV RESISTANT

Approvals: CE, EN 1866 , MARINE

MODEL: TMPD25

DATASHEET:Tianbo Mobile Dry powder series.pdf

Cylinder Height-Approx(mm): 565

Cylinder Diam.-Approx(mm): 103

Capacity: 2

Total Weight(filled)-Approx(kg): 6.2

Discharge Time-Approx(s): 6

Test Pressure(bar): 250

Working Pressure at 20°C(bar): 150

Fire Rating: 34Β

Temperature Range: -30°C to 60°C

Paint Finishing: RAL3000 POLYESTER COATING UV RESISTANT

Mounting: Metal wall bracket

Approvals: CE, BS EN3, MARINE

Model: TMCD2

Datasheet: Tianbo CO2 series.pdf

Cylinder Height-Approx(mm): 383

Cylinder Diam.-Approx(mm): 110

Capacity: 2

Total Weight(filled)-Approx(kg): 3.60

Discharge Time-Approx(s): 13.5

Test Pressure(bar): 27

Working Pressure at 20°C(bar): 15

Fire Rating: 13A 89B C

Extinguishing Agent:  ABC 40% Dry Powder

Propellant Gas: Nitrogen (N2)

Temperature Range: -30°C to 60°C

Paint Finishing: RAL3000 POLYESTER COATING UV RESISTANT

Mounting: Metal wall bracket

Approvals: CE, BS EN3, MARINE

Model: TMPD2S

Datasheet: Tianbo Dry powder Portable series.jpg

[ 1.1.4 TANG]

Cylinder Height-Approx(mm): 380

Cylinder Diam.-Approx(mm): 110

Capacity (kg): 2

Total Weight(filled)-Approx(kg): 3.60

Discharge Time-Approx(s): 15

Test Pressure(bar): 27

Working Pressure at 20°C(bar): 15

Fire Rating: 13A 89B C

Extinguishing Agent: ABC 40% Dry Powder

Propellant Gas: Nitrogen (N2)

Temperature Range: -30°C to 60°C

Paint Finishing: RAL3000 POLYESTER COATING UV RESISTANT

Mounting: Metal wall bracket

Approvals: CE, BS EN3, MARINE

Model: Tang PD2

Datasheet: Tang series- Dry Powder Fire Extinguishers.pdf

Cylinder Height-Approx(mm): 405

Cylinder Diam.-Approx(mm): 110

Capacity: 2LTR

Total Weight(filled)-Approx(kg): 3.60

Discharge Time-Approx(s):15

Test Pressure(bar): 27

Working Pressure at 20°C(bar): 9

Fire Rating: 8A 34B 25F

Extinguishing Agent: WET CHEMICAL

Propellant Gas: Nitrogen (N2)

Temperature Range: 5°C -+ 60°C

Paint Finishing: RAL3000 POLYESTER COATING UV RESISTANT

Mounting: Metal Vehicle Brackets

Approvals: CE, BS EN3, MARINE

Model: TMWC2

Datasheet:Tianbo Wet chemical series.jpg

Cylinder Height-Approx(mm): 438

Cylinder Diam.-Approx(mm): 130

Capacity: 3

Total Weight(filled)-Approx(kg): 5.20

Discharge Time-Approx(s): 15

Test Pressure(bar): 27

Working Pressure at 20°C(bar): 15

Fire Rating: 21A 113B C

Extinguishing Agent:  ABC 40% Dry Powder

Propellant Gas: Nitrogen (N2)

Temperature Range: -30°C to 60°C

Paint Finishing: RAL3000 POLYESTER COATING UV RESISTANT

Mounting: Metal wall bracket

Approvals: CE, BS EN3, MARINE

Model: TMPD3S

Datasheet: Tianbo Dry powder Portable series.jpg

Cylinder Height-Approx(mm): 438

Cylinder Diam.-Approx(mm): 130

Capacity: 3

Total Weight(filled)-Approx(kg): 5.2

Discharge Time-Approx(s): 20

Test Pressure(bar): 27

Working Pressure at 20°C(bar): 15

Fire Rating: 13A 89B

Extinguishing Agent: AFFF FOAM

Propellant Gas: Nitrogen (N2)

Temperature Range: 5°C -+ 60°C

Paint Finishing: RAL3000 POLYESTER COATING UV RESISTANT

Mounting: Metal wall bracket

Approvals: CE, BS EN3, MARINE

Model: TMFM3S

Datasheet: Tianbo portable FOAM series.pdf
